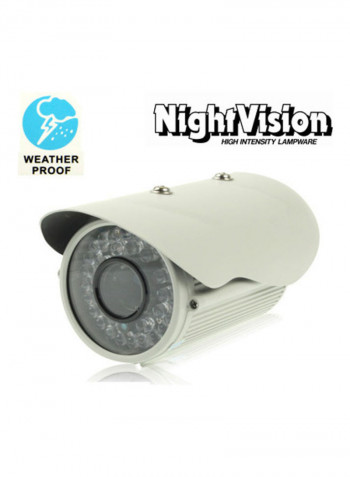

520TVL Waterproof CCD Video Camera

Description: Feathers
1. 1 / 3 Type Sony Super HADII CCD
2. Array IR LED, IR View Distance 50m
3. 16mm Fixed Lens (Standard.
4. Low Power Consumption, Long IR life Span
5. Outdoor Application IP66 Waterproof Case
Specifications
Video:
1. Imaging Sensor: 1/3"Sony Super HADⅡCCD
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 512H × 582V NTSC: 512H×492V
4. Horizontal Resolution: 520TVL
5. Minimum Illumination: 0lux IR ON
6. S/N Ration: ≥ 52dB
7. Video Output: CVBS: 1.0Vp-p/75Ω Composite
8. Correction: 0.45
9. Frequency H: 15.734KHz / V:15.625KHz / V: HZ
10. Sync. System: Internal Synchronization
11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
Operational
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:
1. IR LED: 2pcs Array LED IR Distance 50m
2. Lens Type: 16mm Fixed Lens (Standardz.
3. Mount Type: CS
Electrical
1. Power Supply: DC12V±5﹪
2. Power Consumption: ≤6W
Environmental:
1. Work Consumption ≤85%RH
2. Operation Temperature 20℃--- -50℃
Physical:
1. Case Material Aluminum Alloy (Water Resistant IP66.
2. Camera Dimensions: 205(L. x 100(W. x 90(H. mm
3. Net Weight: 703g 1 / 3 Type Sony Super HADII CCD Array IR LED, IR View Distance 50m 16mm Fixed Lens (Standard
If you find an error in the description, please let us know!
Write a message
Specifications
Model Number
S-SPC-0245C
Grade
New
Model Name
S-SPC-0245C
Colour Name
White
Country of Origin
China
Camera Resolution
1 MP
