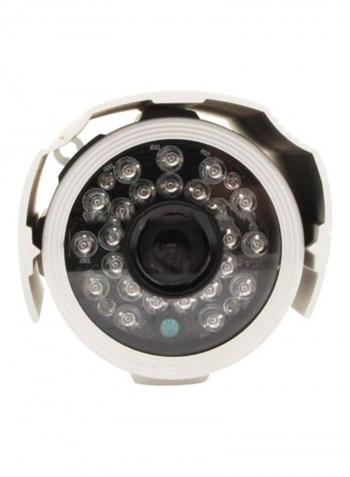

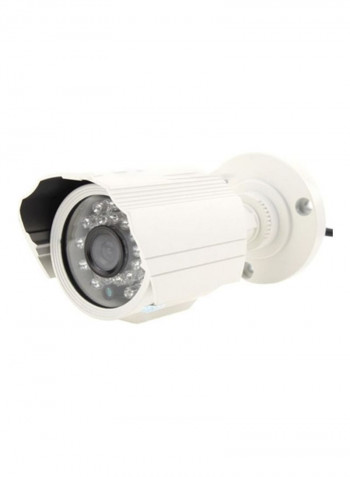

600TVL IR Waterproof CCD Camera

Description: Specifications
Video:
1. Imaging Sensor: 1 / 3 Sony Super HADⅡCCD
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 512H × 582V NTSC: 512H×492V
4. Horizontal Resolution: 600TVL
5. Minimum Illumination: 0lu x IR ON
6. S/N Ration: ≥ 52dB
7. Video Output: CVBS: 1.0Vp-p/75Ω Composite
8. Correction: 0.45
9. Frequency H: 15.734KHz / V: 15.625KHz / V: HZ
10. Sync. System: Internal Synchronization
11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
Operational
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:
1. IR LED: 25pcs LED IR Distance 30m
2. Lens Type: 3.6mm Fixed Lens (Standard.
3. Mount Type: CS
Electrical
1. Power Supply: DC12V±5﹪
2. Power Consumption: ≤6W
Environmental:
1. Work Consumption: ≤85%RH
2. Operation Temperature: -20℃--- +50℃
Physical:
1. Case Material Aluminum Alloy (Water Resistant IP66.
2. Camera Dimensions: 140 (L. x 65 (D. x 65 (H. mm
3. Net Weight: 358g Video: Imaging Sensor: 1 / 3 Sony Super HADⅡCCD Scanning System: 2:1 Interlace
