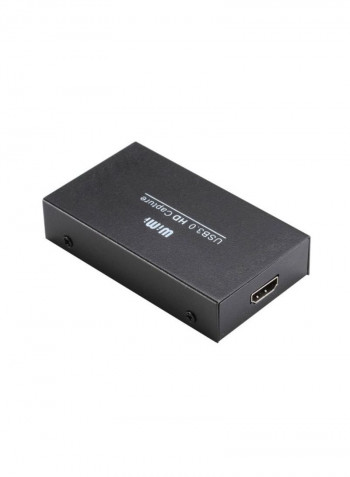

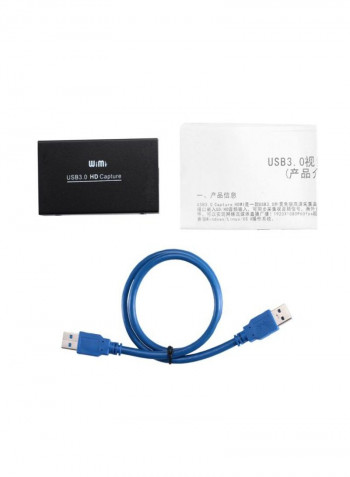

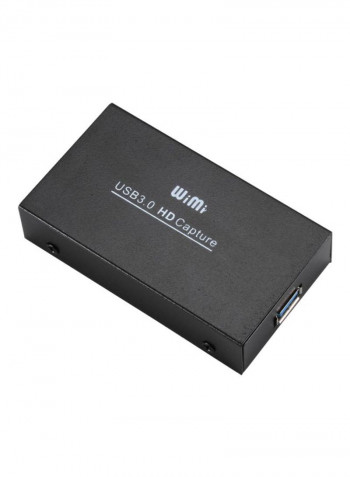

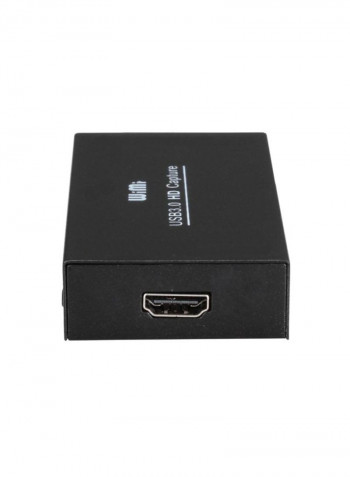

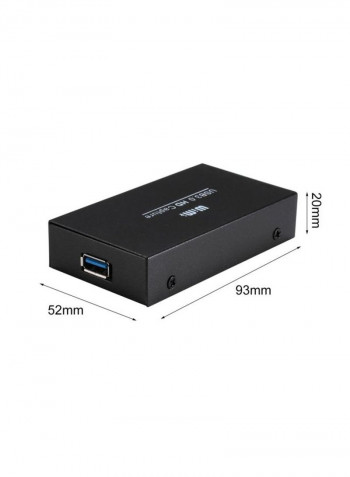

EC288 USB 3.0 HD Meeting Video Capture Box For OBS Black

Features: Recording resolution up to 1080P 60FPS Full HD. UVC design, free drive, easy to use. Allow live video streaming, webcasting or video conferencing. Support most video software for Windows and for MAC. Support USB3.0 high speed socket, recording HD high resolution video to your computer. Input port is HD, recording video and audio. Output port is USB, 300-350MB/[email protected], 40MB/[email protected]. 1 HD port, 1 way 1080P 60Hz HD HD, 1 way LPCM audio signal. Standard HD input/output format. tonality Adopt HD 1.4a standard, support 1080P/60Hz 8-bit,(RGB,YUV). Apply UVC(USB video class),UAC(USB audio) standard, YUY2, RGB24. Hardware support color exchange, zoom in, zoom out. Support adjustment of brightness, contrast, tonal, saturability and other function about image. Support the X86 and X64 version of OS below: for Windows Server 2008 R2/for Windows 7/for Windows 8/for Windows 10 for Linux(Kernel version 2.6.38 and above)/for OS(10.8 and above) for Windows Media Live Encoder(for Windows) for Adobe Flash Media Encoder(for Windows, for OS X)/ for Real Producer Plus(for Windows)/for VLC(for Windows,for OS X, for Linux) for Quick Time Broadcaster(for OS X/for Quick Time Player(for OS X)) Descriptions: USB 3.0 HD capture is a external HD video and audio capture, support voice over recording function. Combining with the software for OSB or for XSplit, it could stream living online. Support 1920X1080@60Hz, compatible with USB 2.0 socket, compatible for Windows/for Linux/for OS X. Specifications: Brand: WIMI Model: EC288 Size: 9.3*5.2*2cm Working frequency: 300MHz Bit width: 16bit Power: ≤2.5W Temperature: -20 to 50℃ Resolution support: 640*480/720*480/720*576/768*576/800*600/1024*768/1280*720/1280*800/1280*960/1280*1024/1368*768/1440*900/1600*1200/1680*1050/1920*1080/1920*1200 FPS support: 25/29.97/30/50/59.94/60fps Package included: 1 x USB 3.0 HD Capture 1 x USB Cable 1 x User Manual Notes: Please allow 0-2mm error due to manual measurement, thanks for understanding. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!
