HT-KIT-01 is a professional grade crimp kit designed with all the tools you need in one rugged, die-foam lined carrying case
Five interchangeable crimp dies accommodate many cable sizes including RG6 8 58 59 316 LMR WBC 195 200 400 HyperLink CA 200 CA 240 CA-400 and several others as well as non-insulated terminals
Two compact coaxial strippers included in the kit can be used for both RG58 series as well as 400 series cable
HT-KIT-01 Professional Grade Crimp Kit Multicolour
Recommend
Sort by
Rating
Date
HT-KIT-01 Professional Grade Crimp Kit Multicolour
Description:
If you find an error in the description, please let us know!
Write a message
Send Report
If you find an error in the description, please let us know!
Specifications
Model Number
HT-KIT-01
Grade
New
Model Name
HT-KIT-01
Colour Name
Multicolour
Country of Origin
Taiwan
Set Includes

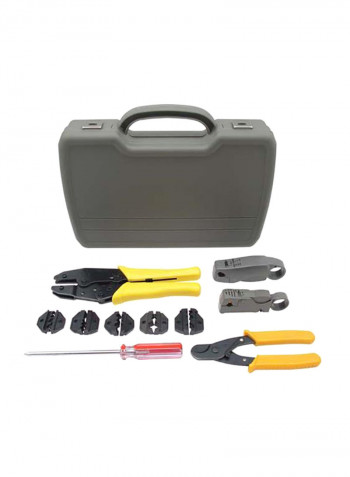

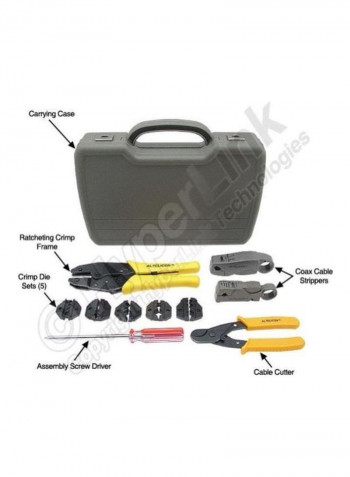

1x Lightweight Ergonomic Ratcheting Crimp Frame 5x Interchangeable Crimp Dies with the following Crimp Dimensions: Die 1 = .256, .213, .068 Die 2 = .028, .039, .047, .100, .128, .151 Die 3 = .100, .128, .429 Die 4 = .068, .213, .256, .324 Die 5 = 1.5mm, 2.5mm, 6mm, 10mm 1x Assembly Screwdriver 1x Adjustable Coax Cable Stripper for LMR/WBC100, 174, 195, 200, 240 and 316, HyperLink CA-200/CA-240, RG58, 59, 62 and 6 Cable (AT-STRIP-01) 1x Adjustable Coax Cable Stripper for LMR/WBC400, HyperLink CA-400, RG8, 11, 213 and 214 Cable (AT-STRIP-02) 1x Cable Cutter 1x Carrying Case
