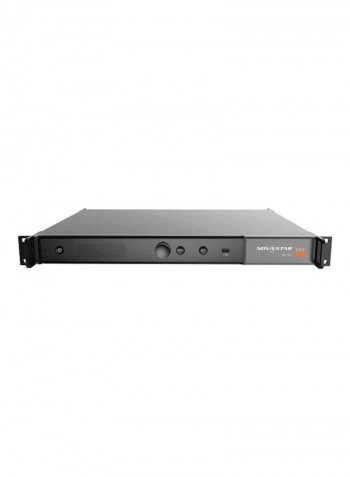

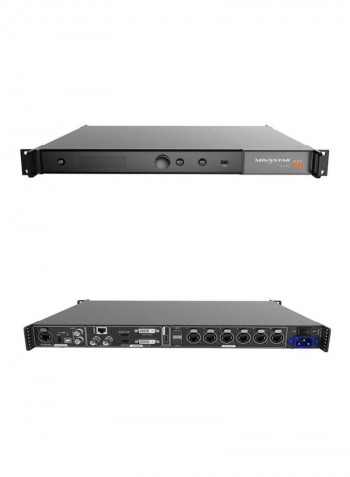

LED Display Video Controller Resolution 1920×1200 MCTRL 660 Pro 482.6×356.0×50.1millimeter Black

Description:

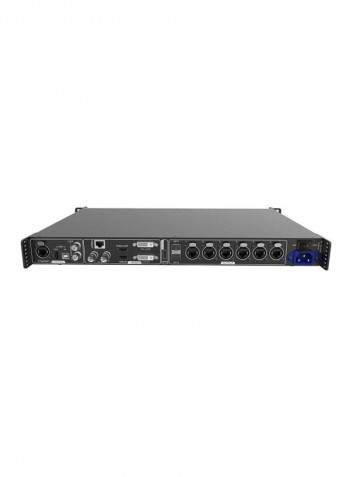

The MCTRL660 PRO has a variety of video connectors: Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI Output connectors: 6 × Gigabit Ethernet port, 2 × 10G optical port Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVILOOPThe MCTRL660 PRO has many industry-leading advanced technologies: Input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with inputresolutions up to 1920×1080@60Hz, increasing color expression capabilities by4096 times compared to 8-bit inputs, and presenting images with rich anddelicate colors, smoother transitions, as well as clearer details Supports individual Gamma adjustment for RGB when the color depth of inputsource is 10-bit or 12-bit, which effectively controls image non-uniformity underlow grayscale and white balance offset to improve image quality. Low latency: Less than 1 ms (when the start position of image is 0.) Dual working modes: working as sending card and fiber converter One-click backup and recovery, quickly recovering previous screenconfigurations to deal with sudden on-site failure Image mirroring, allowing for more cool and dazzling stage effects Auto LED screen configuration Web control Pixel level brightness and chroma calibration Monitoring of inputs Multiple MCTRL660 PRO units can be cascaded.

If you find an error in the description, please let us know!
Write a message
Specifications
Model Number
MCTRL 660 Pro
Grade
New
Model Name
MCTRL 660 Pro
Colour Name
Black
Country of Origin
China
Size
482.6×356.0×50.1 millimeter
Feature 1
Business
Feature 2
Ergonomic
Product Weight
4.6 kg
Product Height
50.1 mm
Product Length
482.6 mm
Product Width/Depth
356 mm
