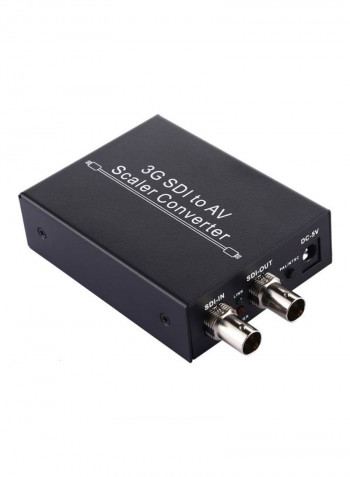

3G SDI To AV Scaler Converter Black

Description: About The Product
The SDI to AV scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.
Features
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Equalized and re-clocked loop output
3. Auto video mode detection (3G/HD/SD.
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
6. Simultaneous display with SDI /AV signals
7. Alternative audio output to analog 2CH
8. Support signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
9. Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
Parameters
1. SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
2. SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
3. SDI in/out Resolution:
- SD: 480i@60, 576i@50
- HD:720p@50/60, 1080i@50/60
- 3G:1080p@24/25/29.97/30/50/59.94/60
4. CVBS Output Resolution: PAL/NTSC
5. Input Port: 1 x BNC (SD/HD/3G-SDI.
6. Output Port: 1 x BNC (SD/HD/3G-SDI., 3 x RCA (CVBS,L/R.
7. Power Supply: DC 5V
8. ESD Protection Human body model: +/-8kV (air-gap discharge., +/-4kV (contact discharge.
9. Dimension: 92mm x 67mm x 25 mm
10. Weight: 180g
11. Operating Temperature: 0~40 degree C
12. Storage Temperature: -20~60 degree C
13. Relative Humidity: 20~90% RH (Non-condensing.
14. Power Consumption (Max.: 5W
Package List
1. 3G SDI to AV Scaler Converter x 1
2. 5V DC Power Supply Adapter x 1
3. Operation Manual x 1
