Cable Stripper Blue/Black

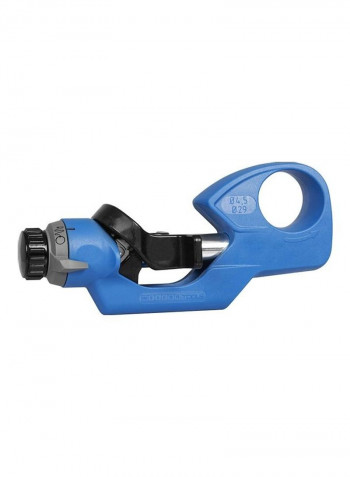

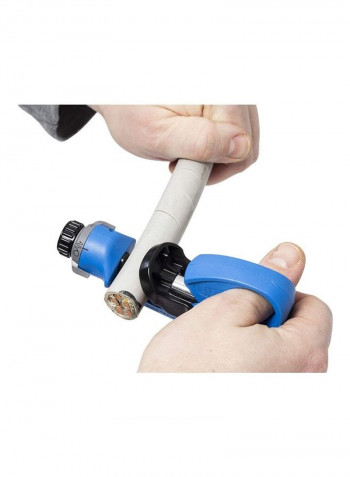

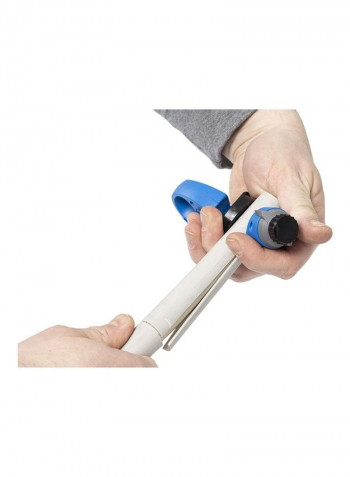

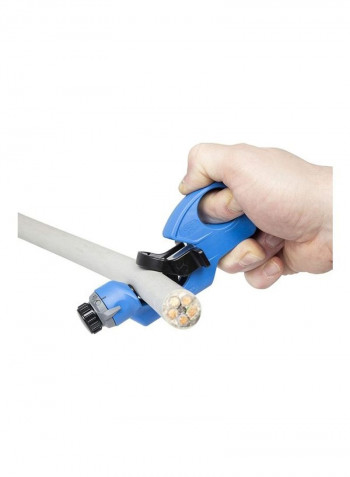

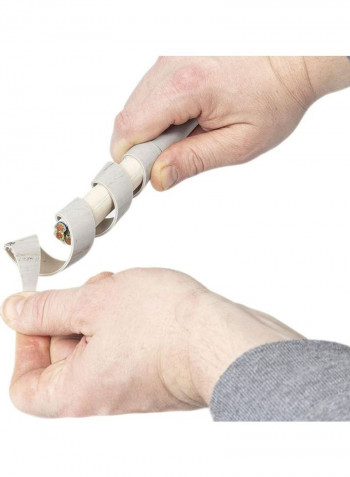

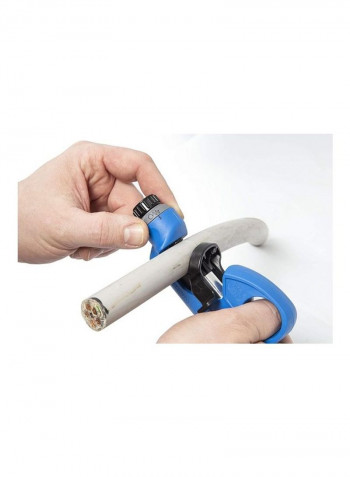

WEICON TOOLS Cable Knife No. 4-29 Spiral | Stripping Tool for Spiral Cut | Round Cut | Longitudinal Cut Application: - Unlock the stripping tool by turning the adjusting ring to the symbol round cut - clamp the tool to the cable by means of spring force - Adjust the blade cutting depth . - Place the tool on the marking of the stripping length and make the circular cut. - Change the setting ring to the spiral cut symbol and perform the operation - for longitudinal cut: set the adjusting ring to the symbol longitudinal cut and pull the tool axially in longitudinal direction. - ready! Technical data: Cable type: cable with an outer sheath thickness of up to 3 mm Range of application: Outer diameter 4.5 - 29 mm; round, longitudinal and spiral cut Inner blade: adjustable in steps of 0.1 mm + exchangeable. Features: The cable knife was specially developed for cables with an outer diameter of up to 29 mm. It is especially suitable for spiral cutting. The spiral cut makes it easy to remove even difficult insulation. In addition to the spiral cut, the cable knife can be used to make circular and longitudinal cuts. Stripping work on cables with an outer diameter of 4.5 mm - 29 mm is possible. Underlying layers are not damaged. The ergonomic electrician's tool has a blocking system that prevents the longitudinal cut setting from opening and thus the blade from breaking off. Special sliding properties of the tool on the contact surface guarantee resistance-free work on a wide range of cable types. The tool is used in electrical engineering | industry | handicrafts | DIY. Safety and health: Working with WEICON stripping tools is only permitted on potential-free, non-energised cables and wires.
