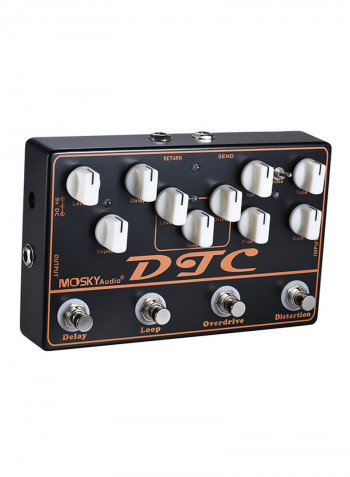

4 In 1 Electric Guitar Effects Pedal Distortion Overdrive Loop Delay Effector

4-in-1 guitar effects pedal, distortion + overdrive + loop + delay.
Distortion a high gain distortion sound,2 modes to choose, with Gain, Tone, Pres and Vol control knobs.
 Gain--Adjusts the amount of distortion; Pres--Adjusts the high frequency; Vol--Adjusts the output level;
 Tone--Adjusts the EQ. Clockwise is brighter, counter clockwise is darker.
Overdrive Based on tube overdrive(ts9), with Drive, Tone and Level control knobs.
 Drive--Adjusts the amount of overdrive; Tone--Adjust the amount of treble in the sound; Level--Adjusts the output volume.
FX Loop The SEND and RETURN jacks allows you to expand your board with other pedals. The FX LOOP point is between the overdrive and delay modules.
Delay with Repeat, Delay and Level control knobs, 25ms-600ms adjustable delay time.
 Level-- Sets the level of delayed signal mixed with guitar tone, there is only guitar signal when fully CCW, and loudest delay when fully CW;
 Delay-- Adjusts the delay time from 25ms(fully CCW) to 600ms(fully CW);
 Repeat-- Adjusts the repeats of the delay signal, one repeat(fully CWW) and infinite feedback(fully CW)

Specifications
Material Metal
Power Supply DC 9V power adapter (not included)
Item Size 19 x 12 x 3.5cm / 7.5 x 4.7 x 1.4in
Item Weight 665g / 1.5lb
Package Size 22.5 x 12 x 6cm / 8.9 x 4.7 x 2.4in
Package Weight
