E-Bike Conversion Kit Set

This Electric Bike Conversion Kit can convert your normal bike to pedelec bike then you can drive an e-bike effortlessly to work.
Features:
DIY rear motor & rim e-bike conversion kit.
Suitable for rear wheel with drop out: 170mm/190mm(optional).
Display panel shows battery power,speed and gear level.Several buttons for quick operation and convenient use.
Dual mode controller can check the motor hall sensor condition automatically. If the motor sensors are broken,controller will operate to None-Hall mode.
8 magnets PAS system is more sensitive to let you pedal bike easier and save your efforts,makes you enjoy cycling.
Brake shifters ensure personal safety while protecting the motor.
Water-repellent controller storage bag can be mounted on a bicycle stand.
Thumb throttle comes with battery indicator.
Specification:
Rim size(diameter*width): 20"x4 / 26"x4 (optional)
Drop out(for rear motor drive): 170mm / 190mm (optional)
Model: With Display Panel / No Display Panel (optional)
Controller: 1500w 48V 35A
RPM: 650
Speed: Max.70 km/h
Max torque: 22 N.M
Compatibility: V brake & Disc brake
Package size: (20"x4)55*55*26cm / (26"x4)60*60*26cm
Package weight: approx. 13.5 kg / 29.8 lb
Package List:

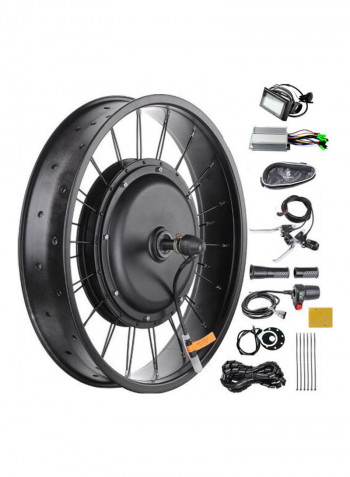

1* Rear Motor & Rim Kit
1* Controller
1* Controller Storage Bag
6* Ribbon
1* Coil Bobbin
1* Pair of Handlebar Cover

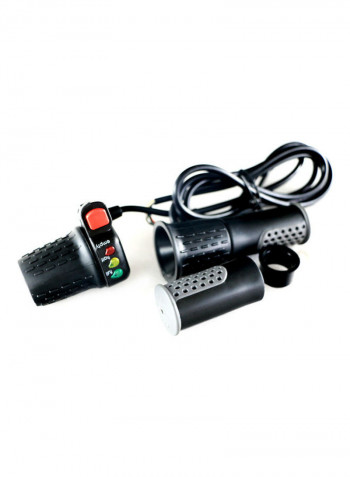

1* Thumb Throttle
2* Bike Brake Shifter
1* Pedal Assitant Sensor
1* Connection Box
1* User Manual

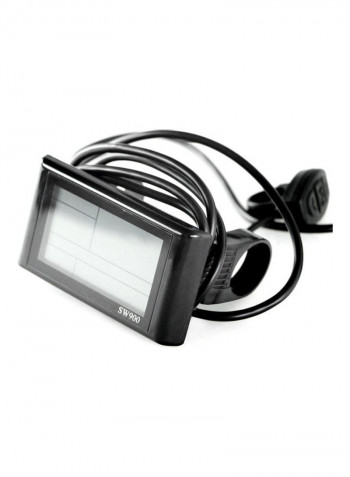

1* LCD Display Panel
