3800KV Brushless Motor And Programming Card Combo Set

Features:

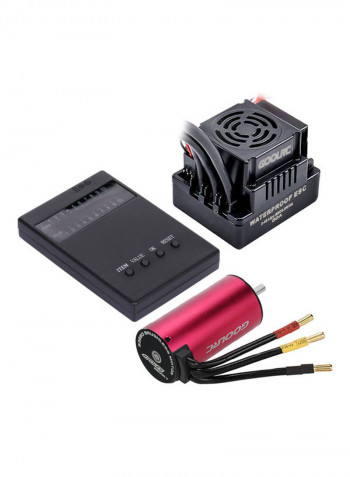

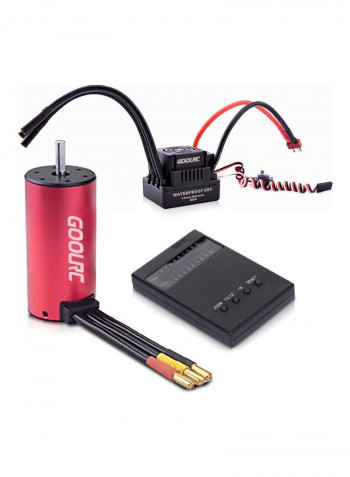

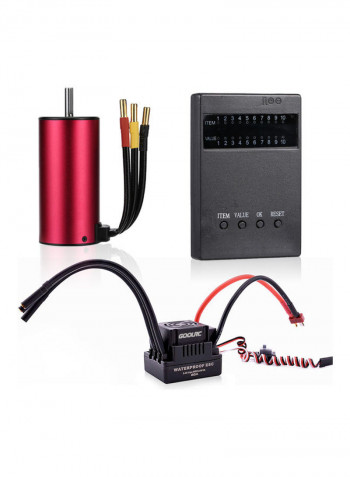

* The set includes an S3660 3800KV motor, an 80A ESC, and a program card, which is perfectly fit for the 1/8, 1/10 RC car.
* ESC continue current: 80A, Burst Current: 480A/10sec. The ESC features high current resistance, excellent heat dissipation, enhanced throttle response, excellent acceleration, strong breaks, and throttle linearity. Built-in high-efficient and high-power 5.8V/3A BEC.
* Equipped with a programming card allow you to conveniently program your ESC settings.
* This motor is built from the best materials and is designed to provide both quality and performance. High purity copper windings maximize high torque and high efficiency. Precision balanced rotor, smoothness for best reliability and maximum RPM, and precision-engineered for maximum energy conversion.
* Multiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, motor blocked protection.
Motor Specifications:

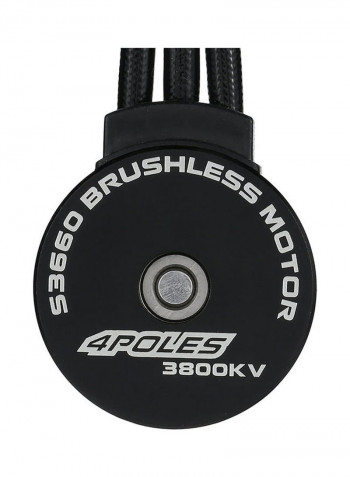

Brand: GoolRC
Item No.: S3660
KV(RPM/Volt): 3800KV
RPM: 50000
Watt: 1200W
Max current: 92A
Max voltage: <13V
Resistance: 0.0083

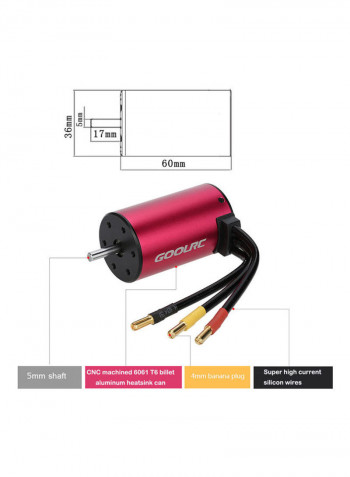

Diameter: 36mm
Length: 60mm
Shaft length: 17mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Weight: 215g
ESC Specifications:
Brand name: GoolRC
Continuous current: 80A
Burst current: 480A/10sec
Power supply: 2-4S LiPo / 4-12S NiMh
BEC: 5.8V/3A
Power supply plug: T plug
Motor plug: 4mm banana connector
Cooling system: Cooling fan
Programmable: YES
Size: 50 * 40 * 35mm
Weight: 115g

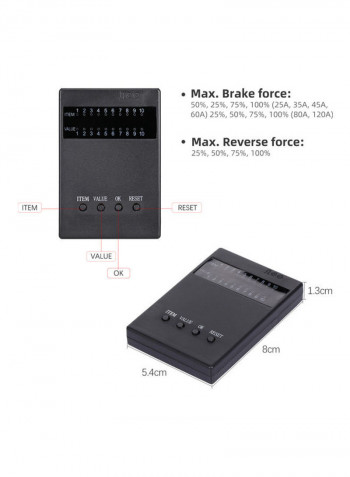

Program Card Specifications:
Item name: Programming Card
Low voltage cut off: 3.7V/3.6V/3.5V/3.4V/ 3.3V/3.2V/3.1V / 3.0V / 2.9V / 2.8V /2.7V / 2.6V
Start modes: Medium soft strong
Max. Brake force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A)
25%, 50%, 75%, 100% (80A, 120A)
Max. Reverse force: 25%, 50%, 75%, 100%
Neutral range: 9%, 6%, 12% work state
Color: Black
Main material: Plastic
Suitable for: Programming HOBBYFANS,OCDAY,GOOLRC brushless ESC
Size: 8*5.4*1.3cm
Package Information:
Package size: 10 * 8 * 6cm
Package weight: 400g
Gift box package
Package List:
1 * GoolRC S3660 3800KV Motor
1 * GoolRC 80A ESC
1 * Programming Card
