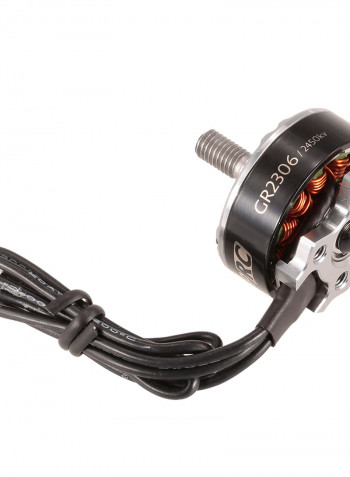

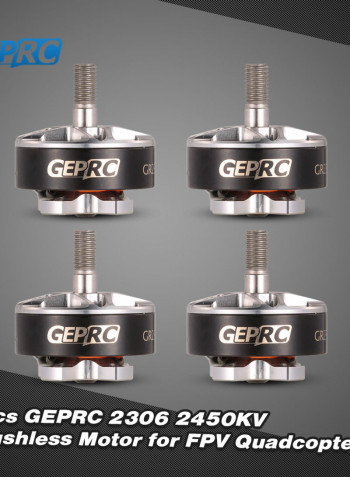

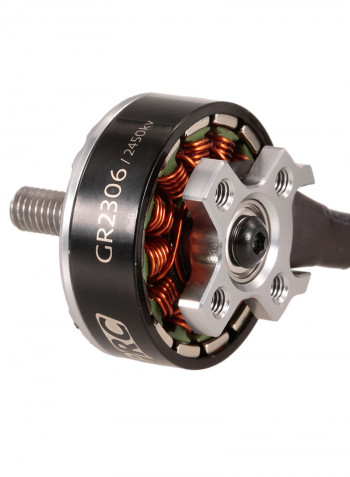

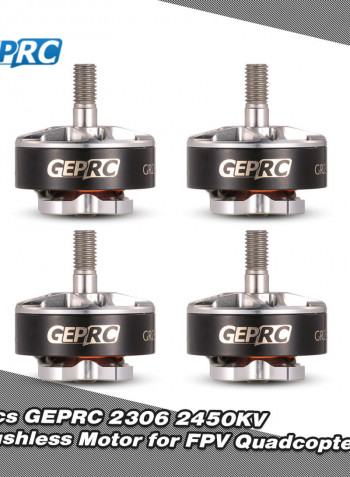

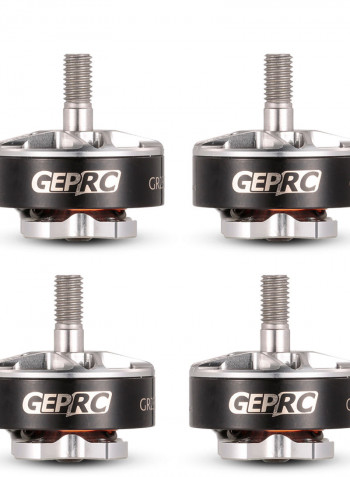

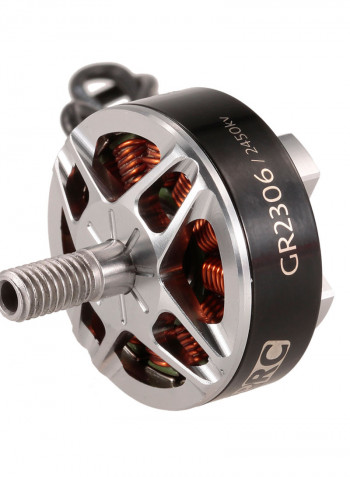

4 Piece GR2306 2450KV Brushless Motor For FPV Racing Quadcopter QAV210 250 Drone 11.5cm

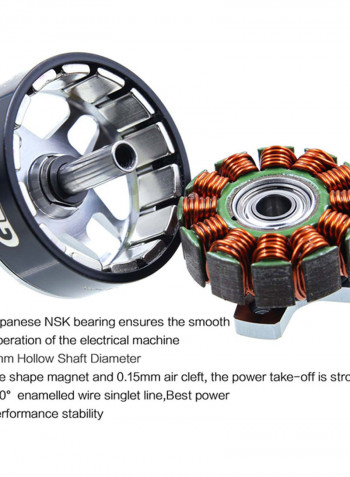

GEP-GR2306 is the enamored production of our GEPRC. It passes our performance test in all aspects, and it can meet our extreme requirement on the parameter of the appearance of the electrical machine totally. Its elaborate appearance processing makes our eyes light up and we believe that the strong and steady power take-off will meet your expectation. Features:Super light base design and strong power take-off. The maximum pull with 2450kv breaks through 1521g (@4S power). It adopts N52H magnet, which ensures the torsion, high temperature resistance and no dropping magnet. Tile shape magnet and 0. 15mm air cleft, the power take-off is stronger. Benign design of heat radiation structure, the temperature reduces 20% compared with the electrical machine in the same type. Specifications:Item name: GEP-GR2306KV: 2450Configuration: 12N14PStator Diameter: 23mmStator Length: 6mmShaft Diameter: 4mm(Hollow)Motor (Dimension(Dia. *Len)): Φ 28. 49 * 30mmIdle current(10)@10V(A): 2. 1Power of Cells(Lipo): 3~5SMax Continuous (Power(W)15S): 950Internal Resistance: 33mΩMax Current(15S): 45AEfficiency Current: (4-8A)>81%Magnet: N52H arc magnetsBearings: NSKBase casing: Al 7075Wire AWG: 20AWGWeight(g): 32g /pcs Package information:Package size: 11. 5 * 10. 5 * 4. 5cm / 4. 5 * 4. 1 * 1. 8inPackage weight: 216g / 7. 6ozPoly bag packagePackage list:2 * GR2306 2450KV CW Motor2 * GR2306 2450KV CCW Motor
