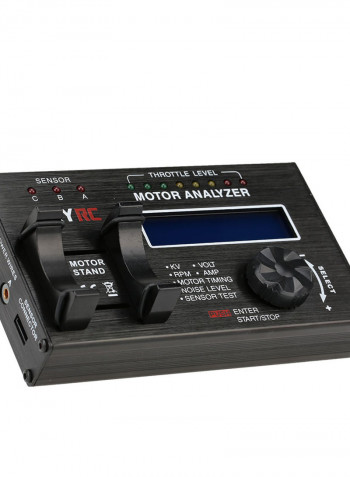

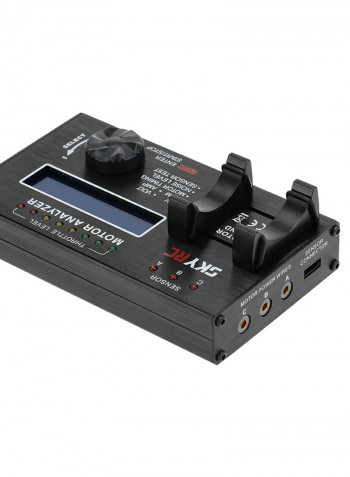

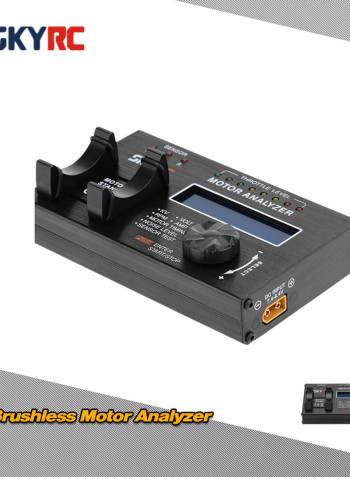

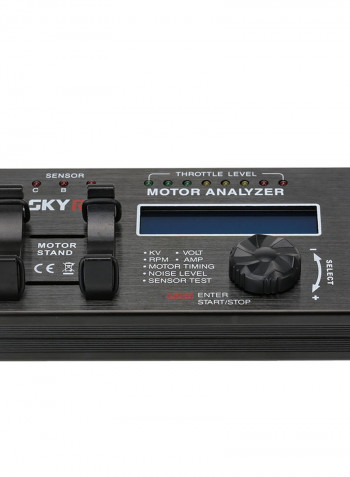

Brushless Motor Analyzer With LCD Display Screen 17 x 5.5 x 12.5cm

SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a LCD diaplay screen which can display real time measuring value of either sensored or sensorless brushless motor.
Features:
KV measurement
RPM measurement
Voltage measurement
Ampere measurement
Motor timing checking: Average timing, phase A, B, C timing
Noise level
Hall effect sensor test
Specifications:
Input voltage: 7.4-8.4V (suggested to use 7.4V 2S LiPo battery)
LCD display screen: Blue backlight background, white text, 16 characters X 2 lines
Supported motor: Sensored or sensorless brushless motor(2 Poles to 36 Poles)
Current drawn less than 30A at 8.4V without loading
KV value accuracy: +/- 3%
Motor timing accuracy: +/- 4%
Noise level measurement range: 60dB-120dB
Dimension: 136.5 * 80.6 * 24.5mm
Net weight: 282g (without cable)
Package Information:
Package size: 17 * 12.5 * 5.5cm / 6.7 * 5 * 2.2in
Package weight: 453g / 1lb
Brand gift box package

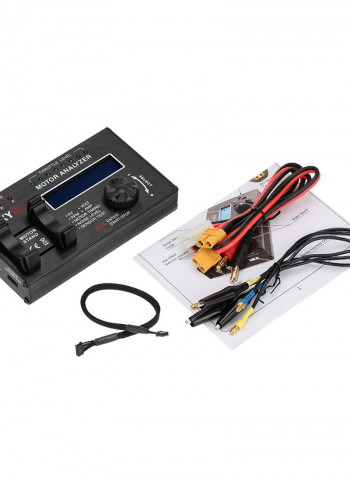

Package List:
1 * SKYRC Brushless Motor Analyzer

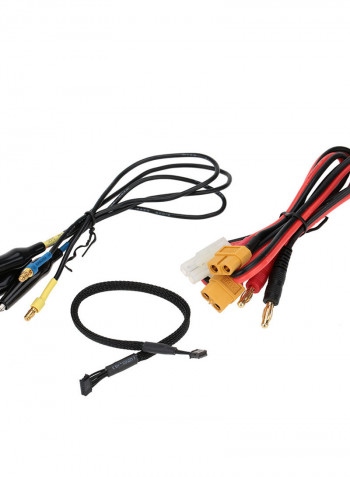

1 * Motor Sensor Cable
1 * Motor cables with 3.5mm banana connector and crocodile clip
1 * DC Input Power Cable with XT60 connector and 4.5mm banana connectors
1 * DC Input Power Cable with XT60 connector and Tamiya connector
1 * English Mannual
