Electric Speed Controller With Programming Card For 1/8 1/10 RC Crawler Car 13.3x5.5x9cm

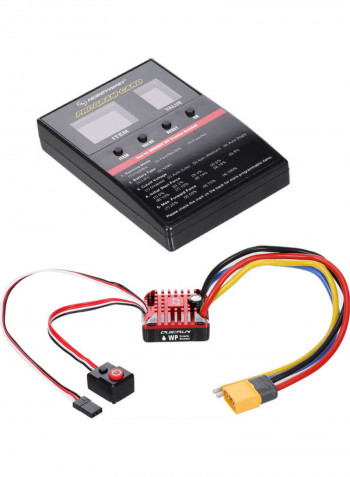

80A ESC is equipped with electronic switches, good heat dissipation, suitable for 1/10 1/8 rock crawler. Programming card for better programming the QUICRUN WP crawler brushed ESC.
Features:

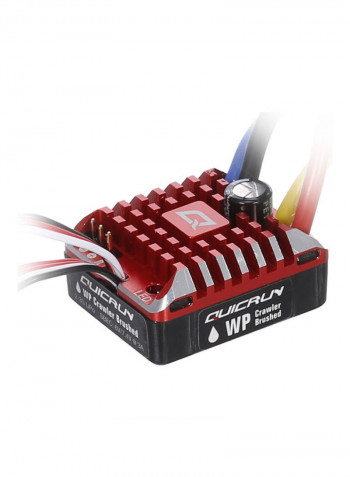

Waterproof design, aluminum alloy material CNC grid-shaped shell design, good heat dissipation effect. Package includes programming card, economical and convenient.
Equipped with electronic switches, compared with traditional mechanical switches, it can avoid problems such as the accidental shutdown of mechanical switches due to impact.
Support 6V and 7.4V switching, Lipo cells: 2-3S, Motor type: Brushed motor(540/550/775 size motors), suitable for 1/10 1/8 rock crawler.
Adjustable PWM frequency, drag brake, and drag brake rate combined with the DEO/ freewheeling technology greatly improve driving control of crawlers in different situations.
Multiple protection functions, battery low voltage protection, over-temperature protection, and throttle out of control protection.
If there are any problems, please contact our store in time. We will give you a satisfactory solution.
Specifications:

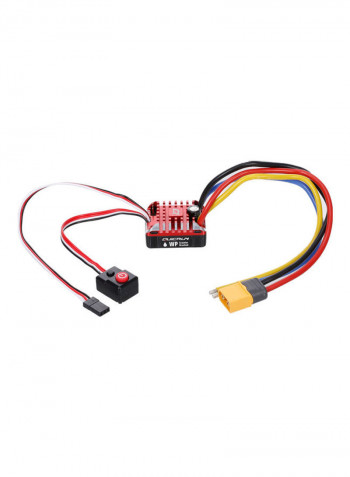

Item: 80A ESC with programming card
ESC:
ESC main color: Black and red
Cont. /peak current: 80A/400A
Motor type: Brushed motor(540/550/775 size motors)
Applications: 1/10 1/8 rock crawler
Lipo cells: 2-3S
BEC output: 6V/7.4V@3A(switch-mode)
Connector: input end: XT60; output end: no connectors

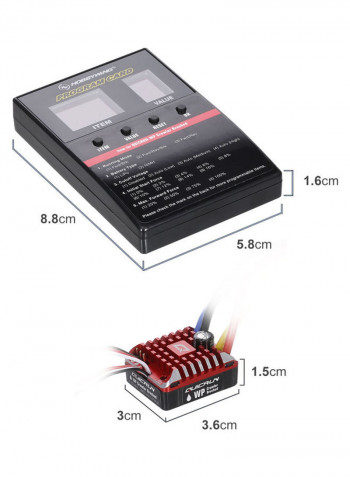

ESC size: 3*3.6*1.5cm

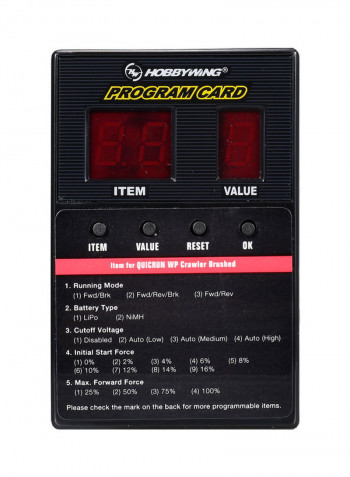

Programming Card:
Running mode: Fwd/Brk; Fwd/Rev/Brk; Fwd/Rev
Max. Brake Force: 0%, 12.5%, 25%, 37.5%, 50%, 62.5%, 75%, 87.5%, 100%
Max. Forward Force: 25%, 50%, 75%, 100%
Max. Reverse Force: 25%, 50%, 75%, 100%
Color: Black
Main material: Plastic
Suitable for: QUICRUN WP crawler brushed ESC
Size: 8.8*5.8*1.6cm
Note:
* There could be some deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.
Package Information:
Package size: 13.3*9*5.5cm
Package weight: 190g
Gift Box Package

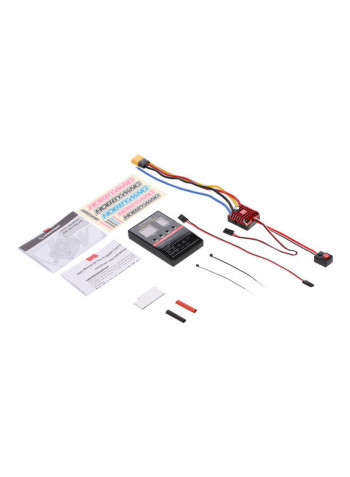

Packing List:
1* 80A ESC
1*  Programming card
1* Cable
2* User manual
1* Other fittings
