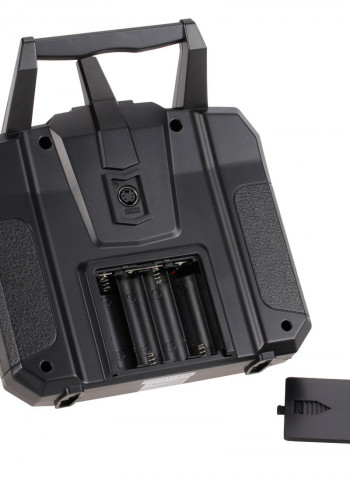

FS-i6X 2.4GHz 6CH/10CH AFHDS 2A Transmitter Remote Controller With FS-X6B Receiver For RC Drone Airplane Helicopter 23.2cm

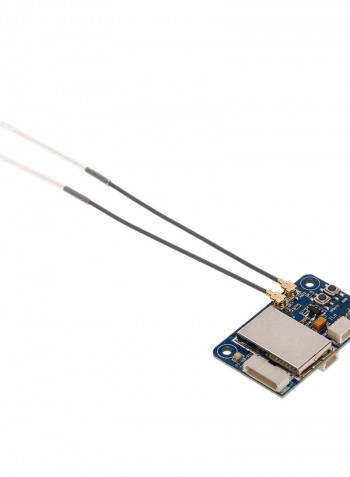

The FS-i6X transmitter and FS-X6B receiver constitute a 2. 4GHz AFHDS 2A digital proportional computerized RC system. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models. Features:Adopt AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. Receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support. Multi-channel hopping frequency, hop between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters. Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference. Low power consumption, consuming as little as one tenth the power of a standard FM system, dramatically extending battery life. The FS-X6B supports 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface. FS-X6B receiver fits for FS-i10, FS-i8, FS-i6, FS-i6s, FS-i6x, FS-i4, FS-i4x etc. FS series rc transmitter. FS-i6X Transmitter Specifications:Channels: 6-10 (default 6)Model type: Fixed-Wing/Glider/Helicopter/QuadcopterRF Range: 2. 408-2. 475GHzRF power: <20dBmRF Channel: 135Bandwidth: 500KHz2. 4GHz system: AFHDS 2A / AFHDSModulation type: GFSKStick resolution: 4096Low voltage warning: <4. 2VDSC Port: PS/2 PortChargeable: NoAntenna Length: 26mm (Dual Antenna)Weight: About 400gPower: 4 * AA battery (not included)Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlightSize: 190 * 174 * 89mmOn-Line Update: YesColor: BlackCertificate: CE0678, FCC ID: N4ZFLYSKYI6XFS-X6B Receiver Specifications:Channels: 6(PWM), 8(PPM), 18(i-BUS)2. 4GHz protocol: AFHDS 2AModel type: Multi-rotorRF Range: 2. 408-2. 475GHzBand width: 500KHzNumber of bands: 135RF power: No more than 20dBmRX Sensitivity: -95dBmModulation type: GFSKStick resolution: 1024Low voltage alarm: YesAntenna Length: 93mm (Dual Antenna)Power input: 4. 0-8. 4VOn-line Update: Yes (Wireless) Range: >300mCertification CE0678, FCC ID: N4ZX6B00Ports: (These ports are for connecting the receiver to various models and flight controllers)   PWM signal port: GND, VCC. Outputs channels 1-6 PWM.    PPM signal port: Outputs standard PPM signal. i-BUS signal port: Outputs i-Bus signal, up to 18 channels. Voltage sensor port: External power sensor (1S-4S connector) +0 to +18V.  Size: 36 * 22 * 7. 5mm / 1. 4 * 0. 86 * 0. 29inWeight: About 5gPackage information:Package size: 23. 2 * 20. 8 * 10. 5cm / 9. 13 * 8. 18 * 4. 13inPackage weight: 670g / 1. 47lbGift box packagePackage List:1 * FS-i6X Remote Controller1 * FS-X6B Receiver1 * Cable Set1 * Sticker Set1 * Manual
