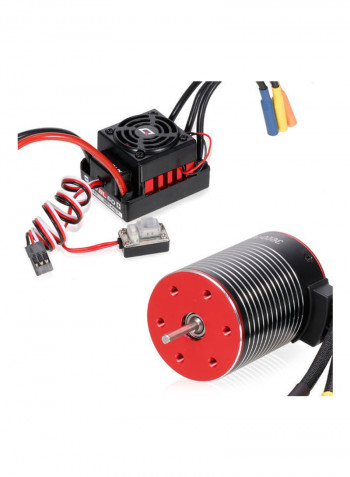

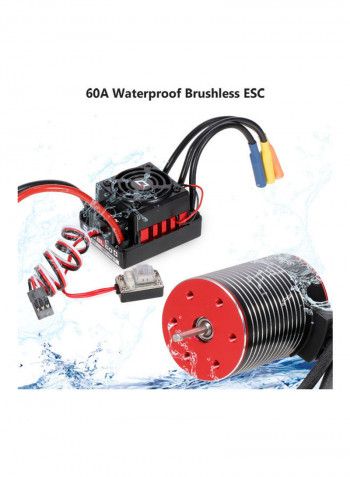

RC Car Waterproof Brushless Motor 18x5.6x9cm

Description:

The waterproof 3650 5200KV brushless motor with 60A ESC combo is designed to provide both quality and performance at an affordable price. Waterproof function motor and ESC let your car challenge the muddy road. Providing many conveniences for your 1/10 RC car truck.
Features:
The motor and ESC are suitable for 1/10 scale RC cars and so on.
The motor with 4 poles 12 slot Hi-torque motor design and CNC machined 6061 T6 billet aluminum heatsink can.
High purity copper windings maximize efficiency and high RPM ABECS oversized bearings. Precision engineered for maximum energy conversion.
The ESC compatible with an optional device-the portable Digital LED Program Card, especially convenient for outdoor use.
Multiple protections: Low voltage cut-off protection/over-heat protection/throttle signal loss protection/motor lock-up protection.

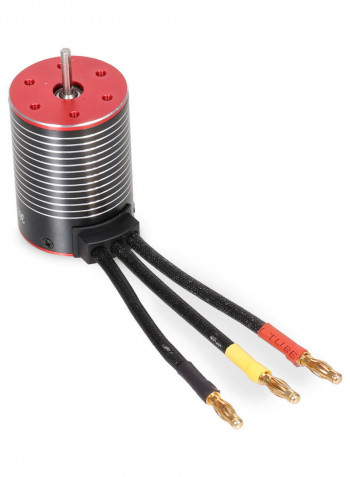

Motor Specifications:
Item name: 3650 Brushless Motor
Type: 5200KV
Watts: 900
Max voltage: <9.6V
Max amps: 94A
Rotor poles: 4
IO: 3.7A
Resistance: 0.0051
Max RMP: 50000
Shaft(mm): 3.175
Length of extending Shaft: 15mm
Connector: 4.0mm gold
Weight: 169g

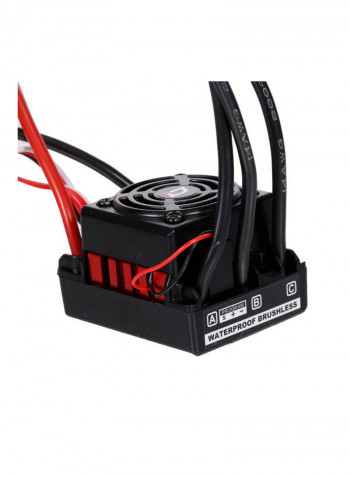

ESC Specifications:
Item name: Brushless 10BL60 ESC
For: 1:10 RC On-road/Off-road/Buggy
Cont.cunrrent/Burst current: 60A/360A
Resistance: 0.001 Ω
Battery: 4-9 Cells NiMH / 2-3S Lipo
BEC Output:6V/3A (Switch Mode)
Working voltage of fan: from BEC(6V)
Size: 48 x 36 x 30 mm
Weight: 87g
Package Information:
Size: 18 x 9 x 5.6 cm
Weight: 347 g

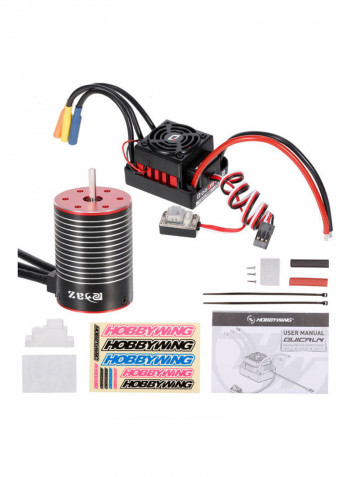

Package List:
1 x 5200KV Brushless Motor
1 x Brushless 10BL60 ESC
1 x Accessories Kit
