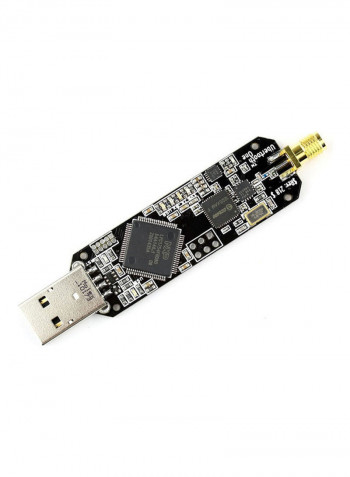

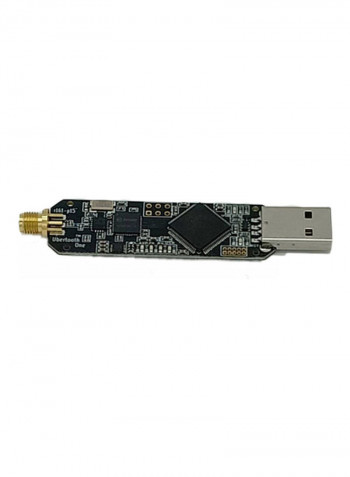

Ubertooth One Module Test Tool 2.4GHz Wireless Platform for Bluetooth Experiment

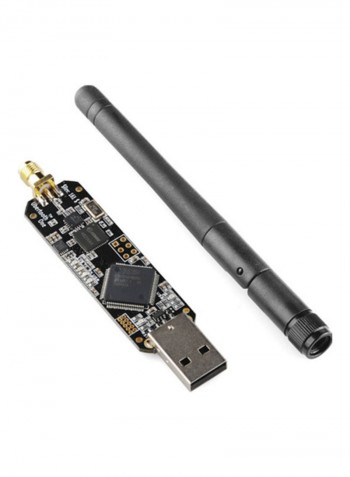

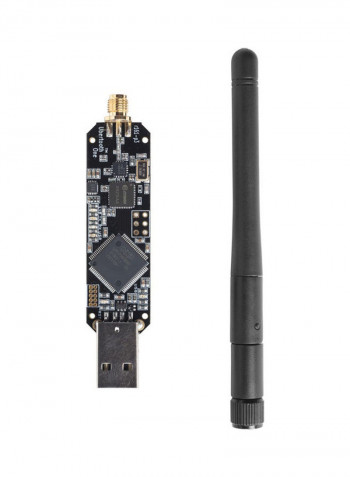

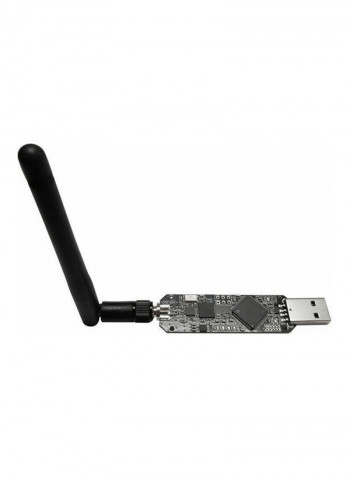

Specifications: The product is a 2.4GHz transmit and receive wireless development platform. Its transmit power and receive sensitivity comparable to a Class 1 Bluetooth device. It has standard cortex debug connector(10-pin 50-mil JTAG), in-system programming(ISP) serial connector, and expansion connector intended for inter-Ubertooth communication or other future uses. This item has six Indicator LEDs and comes with 2.4GHz duck antenna. Item Name: Bluetooth Test Tool Material: PC Plug and Play: Yes Transmission Rate: 5Mbps Effective Working Radius: 5m Bluetooth Standard: 2.0 Tool Size: 61.75mm x 19mm/2.43" x 0.75" (Approx.) Notes: In order to open the schematic and board design files found in the source package, you will need to download KiCad, which is an open source electronic design automation software package. Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Package Includes: 1 x Bluetooth Test Tool(with Antenna)
